Towing Tank Dynamometers
Towing Tank Dynamometers
All our dynamometers are fixed in surge and sway and free to pitch and heave. Some specifications are listed below, however dynamometers can be configured to the customer’s requirements with little additional cost.
- Single post design for models up to ~3.5m
- Multi post designs for models >3.5m or for significant yaw moment models.
Specification
Single Post | 3 Post Ship | 3 Post Sailing | |
---|---|---|---|
Model Types | Sailing and Ship | Ship Only | Sailing and Ship |
Drag/Thrust Range | 0 – 60N,200N,500N | 0 – 500N | 0 – 500N,1500N |
Side Force Range | 0 – 60N,200N,500N | NA | 0 – 500N,1500N |
Roll Moment Range | 20Nm | NA | 100Nm |
Yaw Moment Range | 20Nm | NA | 500Nm |
Max Heave | 300mm | 300mm | 300mm, adjustable |
Max Pitch | 15 deg | 10 deg | 10 deg |
Yaw and Roll adjustment | Fixed, adjustable | Fixed | Fixed, adjustable |

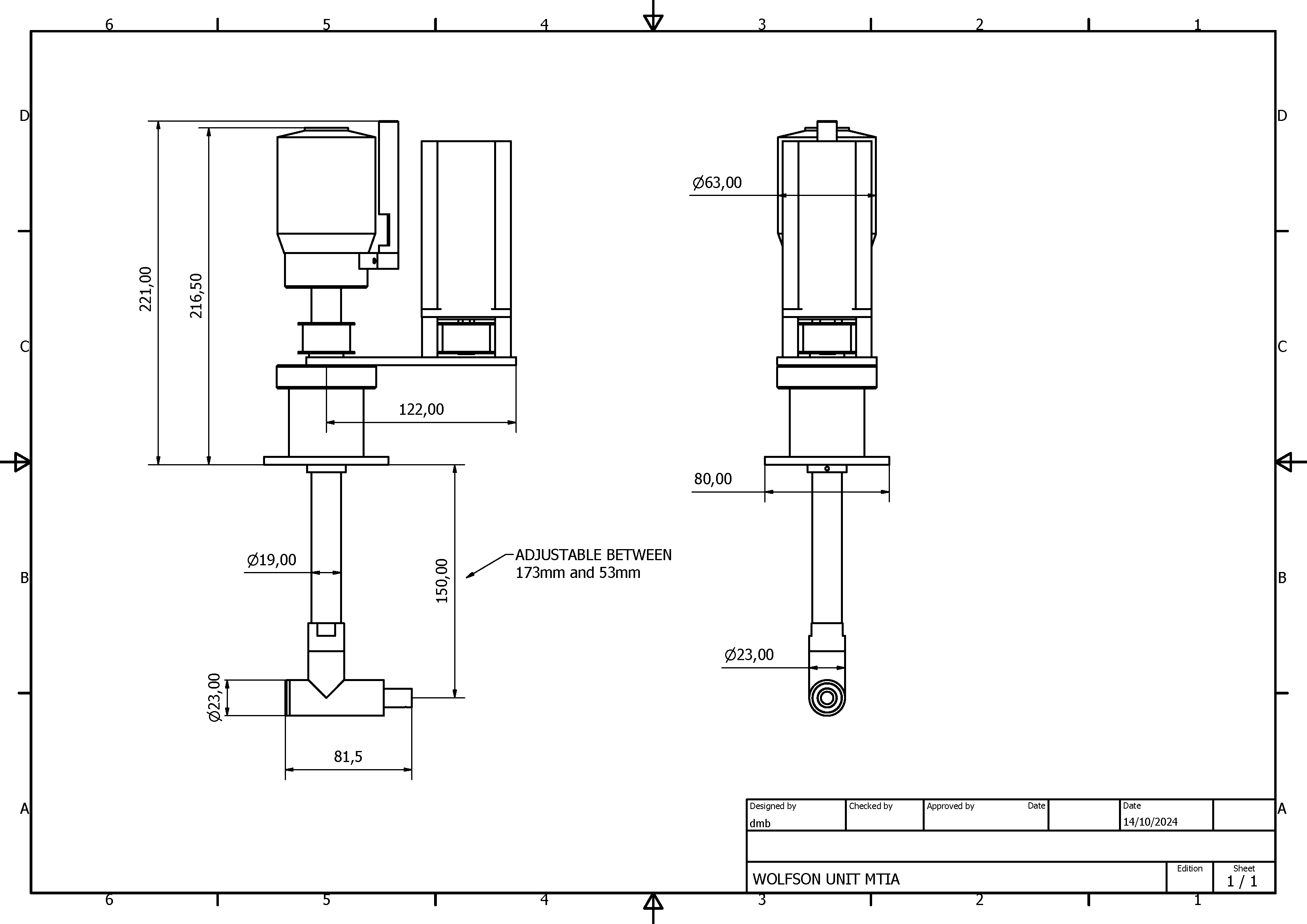

Azimuthing Thrusters
Azimuthing Thrusters
The Wolfson Unit presents a versatile azimuthing thruster base package for use in self-propelled model testing where analysis of the manoeuvring characteristics is required. Key features are:
- Compact leg and gearbox size allows fitting of a number of different thruster cowling designs
- Adjustable vertical immersion to suit cowling design
- Compact size allows propeller diameter sizing over a large range, allowing a choice of model scale which suits the hydrodynamic facility.
- Robust, simple to fit and commission into a model
- Powerful sensored brushless drive motor for accurate control of propeller RPM
- Standard NEMA 23 stepper motor for control of azimuthing angle
- Full 360 degree rotation (single turn in opposed directions)
- Full waterproof sealing at thruster / hull boundary
Specification
Maximum thrust gearbox capacity | 150N |
Maximum gearbox torque capacity | 5Nm |
Maximum no load shaft RPM (36V) | 4300 |
Maximum rated motor power | 2000W |
Motor supply voltage | 24 – 36V DC |
Motor sensors | 3 x hall effect |
System gearbox ratio | 1:1 |
Suggested propeller diameter range | 80 – 130mm |
Azimuthing range | 360 degrees |
Vertical adjustment range from thruster CL and hull bottom | 53 – 173mm |
Maximum hydrostatic pressure head @ prop centre line | 0.5m |
Azimuthing motor | NEMA 23 stepper motor (113mm) |
Maximum azimuthing torque | 3Nm |
Maximum azimuthing motor current @ max torque | 4.2A |
System mass | 4.5kg |
Wind Tunnel Dynamometers
Wind Tunnel Dynamometers
Model scale sailing yacht wind tunnel testing demands dynamometry that can withstand large roll moments without affecting the accuracy of thrust and sideforce measurements. In response to the lack of suitable off-the-shelf equipment meeting these specifications, the Wolfson Unit took the initiative to develop and manufacture its own sailing yacht aerodynamic testing system, subsequently making it available for commercial use.
- Under floor 6 axis dynamometer
- Single axis cycling drag dynamometer
Bespoke Force and Torque Sensors
Bespoke Force and Torque Sensors
Dynamometers can easily be configured to the customer’s requirements in terms of load/moment ranges and axes of freedom/measurement and physical size.
Bespoke Electro-Mechanical Systems
Bespoke Electro-Mechanical Systems
Our expertise with outfitting remote-control models and onboard data acquisition allows us to create effective custom complex electro-mechanical systems.
- Sensor data logging.
- Torque and force measurement.
- Mechatronics.
- Electric motor drive control.
Get in touch with our engineers to discuss your project needs.
Outboard Thrust Meter
Outboard Thrust Meter
Our outboard engine thrust meter provides an accurate curve of drag against boat speed allowing you to assess the performance improvements to your hull. Clients have used this product to quantify the effect of changes to the hull, changes of displacement and centre of gravity and the effectiveness of additional appendages.
- Measures and logs outboard thrust, speed and trim.
- Simple and fast to fit.
- Up to 350HP/10kN.
- Live display of thrust and boat speed through NMEA 2000.
- 23kg
- IP65/68 environmental protection rating.
- 76mm thickness.
Help and Support
If you need any support with your project, please get in touch.
